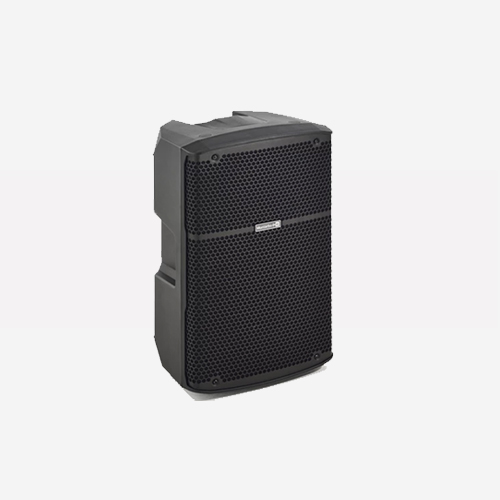

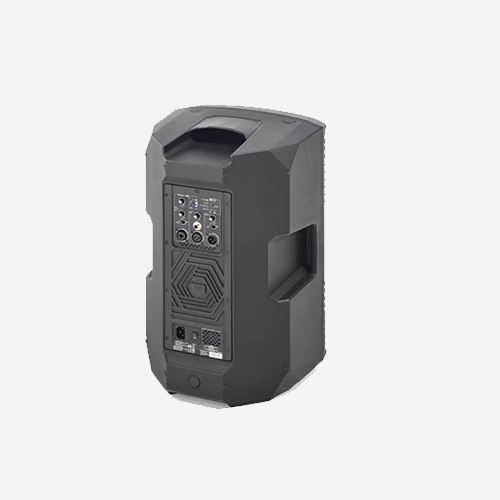

B110 is a versatile, portable, powerful active speaker suitable for small to medium venue applications.The bass-reflex cabinet is equipped with a 10” woofer and a 1.35 ”compression driver boosted by a 400 W amp module.B series’ advanced DSP featuring FIR filters allows a smooth audio performance as well as an impressive dimension/sound pressure level up to 126 dB.B series speakers feature 3 input channels (Mic/line, Line, Bluetooth) with independent levels. Bluetooth devices can be easily connected thanks to the on-board “PAIR” button.Moreover, 4 different on-board presets allows users to optimize the audio performance for the application in use.A clean design integrates 3 handles and rigging points for fixed installation to the lightweight polypropylene cabinet which also allows horizontal stage monitor use,thanks to a 40° inclination of 2 sides of the box (a dedicated preset wedge EQ is selectable on board). The flange for pole fixing on the bottom of the box allows users to choose a 0° or a 7.5° inclination of the cabinet placed on a standard 35 mm tripod.Covers for transport and weather protection are available as accessories for every model in Montarbo B series.FeaturesActive 2-way speakerBluetooth stereo connectivity3 channel INPUTAdvanced DSP featuring FIR filters4 on-board presetsUp to 126 dB SPLWedge usePole mountRigging pointsTECHNICAL SPECIFICATIONSAcoustical DataSpeaker Type2-way Active bass reflexFrequency Response [-10 dB]60 Hz – 20 kHzMax SPL126 dBHF1.35″ driverLF10″ – 2″ VCDispersion90° H x 60° VCrossover Frequency1.8 kHzAmplifierAmp ClassD A/BRMS Power200 WPeak power400 WCoolingConvectionDSPAdvanced FunctionsFIR FiltersDSP28/56 BitAD/DA Converter24 bit, 48 kHzControlsCh. levels, MAIN level, PRESET button, Channel sens. LINK/MIX selectionConnectorsCH1: Combo CH2: XLR-F jack 6,35mm (1/4”) AUX IN: mini-jack 3,5mm LINE OUT: XLR-MBluetooth ®5.0 stereoEnclosureDimensions310 x 524.5 x 280 mm [12.2” x 20.6” x 11”]Weight11.3 kg [24.92 lb]CabinetPolypropilene
