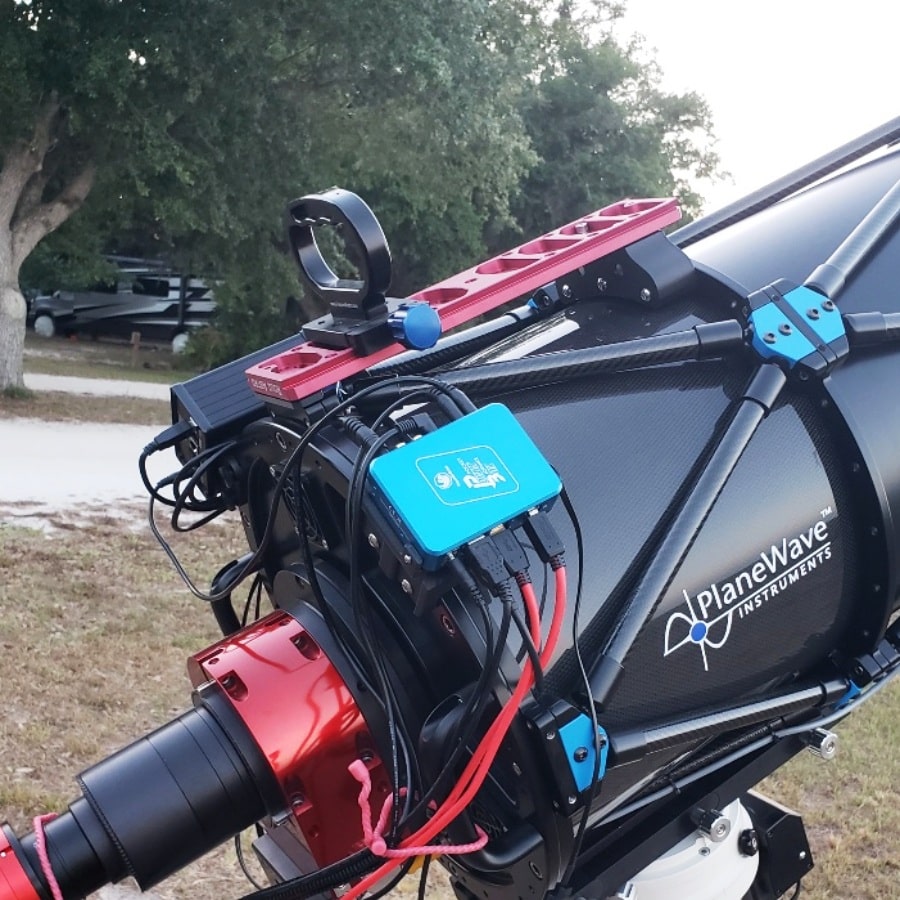

Description Piggyback Dovetail Bar For Planewave CDK14 Bolts to the CDK telescope top and/or sides, these allow accessories to be mounted securely with clamps An excellent place to save weight (carbon version typically 1/3 – 1/2 that of metal) Features CAD designed and produced using the FDM process (fused deposition modelling) for a combination of exceptional strength and low weight thanks to the tough carbon fiber composite material that offers excellent mechanical properties. Heavy Duty: CNC Aluminum / Carbon composite hybrid for payloads up to 60lbs – 27kg Light Duty Carbon Fiber Version: Deigned to carry accessories up to 12lbs – 6kg Can mount up to 3x bars on the CDK14 All hardware is included Specifications Kit weight (light duty carbon version): 400 grams (0.85 lbs) Kit weight (heavy duty CNC aluminum): 925 grams (2.1 lbs) Bolt spacing width: 35 to 51mm (0.8 to 2.0inches) central holes. FDM Print – Carbon fiber composite material Various hole spacing and slots to accept M6 or 1/4-20 bolts High UV, water, chemical, salt, and temperature resistance (60 DegC – 145 DegF).
