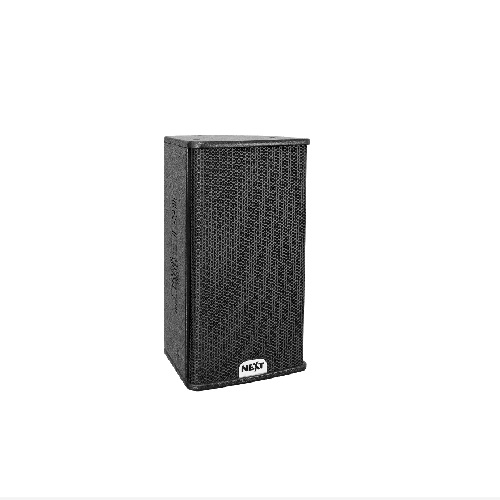

KEY FEATURES45 degrees monitor angleRotatable, constant directivity HF horn8″ LF speaker and 1″ HF compression driver2-Way Internal passive processorHigh Performance Loudspeaker/Stage MonitorMAIN CHARACTERISTICSFreq. Resp. (-6dB): 72Hz – 20.000HzLF Extension (-10dB): 64HzMaximum SPL: 120dB/126dB (Full-Space)Power (Pgm/Peak): 400W/800WNominal Impedance: 8ΩX-Line systems These compact loudspeakers are designed for virtually any application where size is critical and high output and outstanding sonic performance are required.Natural sounding music and intelligible speech are the result not only of a careful system design, but mainly the selection and matching of the components. To assure maximum performance and reliability, the X line incorporates only high quality speakers from one of the leading European loudspeakers manufacturer, B&C.The constant directivity horns used in the full-range speakers are user-rotatable (except X212) to allow the multi-angle enclosures to be used in either their vertical or horizontal orientation, depending on the application. These versatile speakers work equally well as floor monitor, on tripod stands or as a flying system with a wide range of rigging points.Like the rest of the family, Xs subwoofers are designed to provide the sound system operator total flexibility to deliver as much “kick” as the application demands. All are based around high power woofers and vented or band-pass, rigidly braced enclosures that delivers maximum efficiency and punch.The cabinets are constructed using 11-ply birch plywood and finished in durable black semi-matt textured paint. Front and speakers protection is assured by an acoustically transparent power coated metal grille.Construction12mm multi-laminate birch plyMonitor Angle45°FinishTextured black semi-matte coatingProtective grillBlack perforated steelFittings16 x M6 threaded inserts, 1 x 35mm pole mount socketDimensions (WxHxD)254 x 451 x 238mm (10 x 17.76 x 9.37in)Net Weight8.9kg (19.6lb)Shipping Weight9.9kg (21.8lb)
