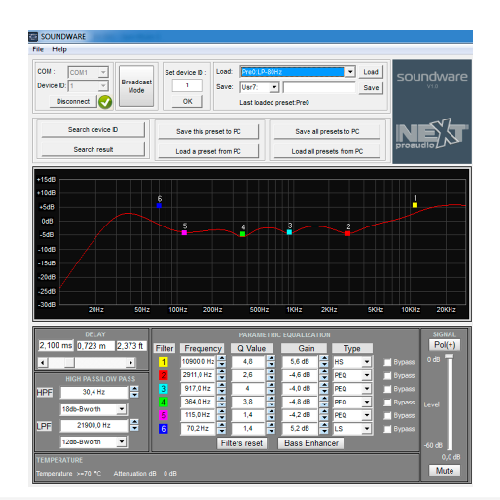

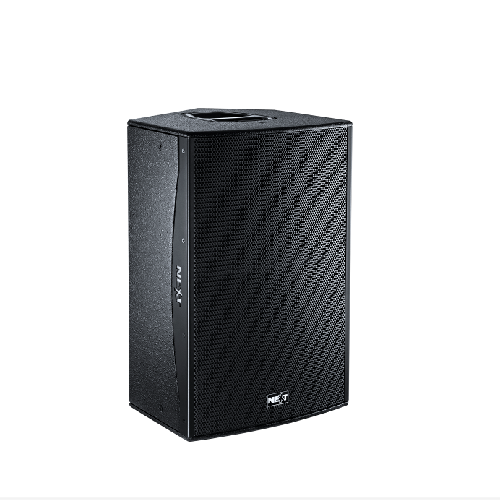

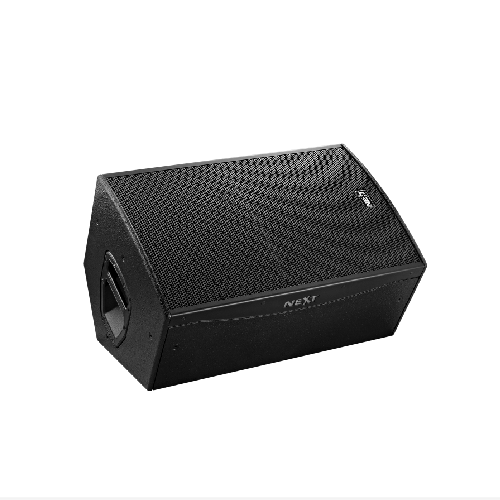

KEY FEATURES60 degrees monitor angleUser Rotatable, Constant Directivity HF horn15″ LF speaker and 1″ HF compression driverActive Speaker/MonitorMAIN CHARACTERISTICSFreq. Resp. (-6dB): 54Hz – 18.000HzMaximum SPL: 126dB/132dB (Full-Space)Dispersion (HxV): 90° x 60° user rotatableSection Power (RMS/Program/Peak) LF: 400W/540W/1080WSection Power (RMS/Program/Peak) HF: 100W/135W/270WNEXT-proaudio engineered the new PFA series of self-powered or passive speaker cabinets, specifically for installations, musicians and DJs who want state-of-the-art acoustics and electronics at a limited budget. This speaker line employs premium-quality multi-plywood with a hardening, durable, and scratch-resistant coating, fully rotatable constant directivity HF horns to adjust H x V angle coverage and custom made speaker drivers. Manufacturing takes place in Europe at our plant based in Rio Tinto, Portugal.This series are made up of speakers and subwoofers that bind together forming the perfect combination. Several combinations of speakers and subwoofers can be done in order to satisfy your needs. The active speakers feature a variety of factory presets that allow you to use it like a plug n’ play perfect solution for the venue.Technical DataSpeaker TypeActive Two-Way Speaker/MonitorAcoustical DataFrequency Response (-6dB)54Hz – 18.000HzCalculated Max. SPL (Cont/Peak)126dB/132dB (Full-Space)Coverage Angle -6dB (HxV)90° x 60° user rotatableDriversLow Frequency1 x 15″ (380mm)/3″ (76mm) voice coil, custom speakerHigh Frequency1 x 1″ (25mm) exit/1.75″ (44mm) voice coil, custom compression driverAmplifier ModuleAmplifier Technology2 channel switched mode class AB with DSPSection Power (RMS/Program/Peak) LF400W/540W/1080WSection Power (RMS/Program/Peak) HF100W/135W/270WController–System Presets6 Factory and 2 User, selectable via software or rear panel switchPC ControlVia RS485 and suplied software “SOUNDWARE”DSP Adjustable Parameters6 PEQ, delay, HPF, LPF, Bass Enhancer, Level, Polarity, MuteAC Operating Voltage90V – 245VNominal Power Consumption550WMains ConnectorSignal: 2 x XLR ; Power: 2 x powerCONEnclosureDimensions (WxHxD)431 x 654 x 440mm (16.97 x 25.75 x 17.32in)Net Weight25.7kg (56.7lb)Shipping Weight28.5kg (62.8lb)
