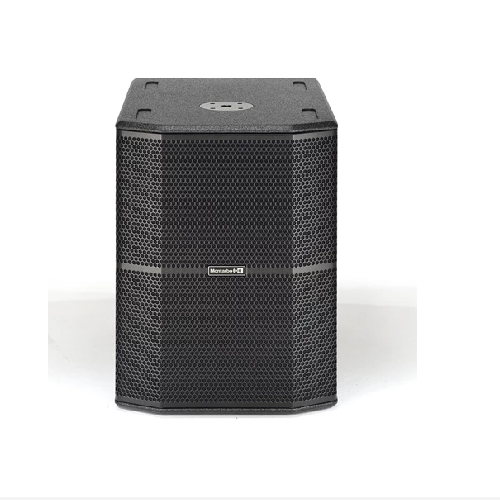

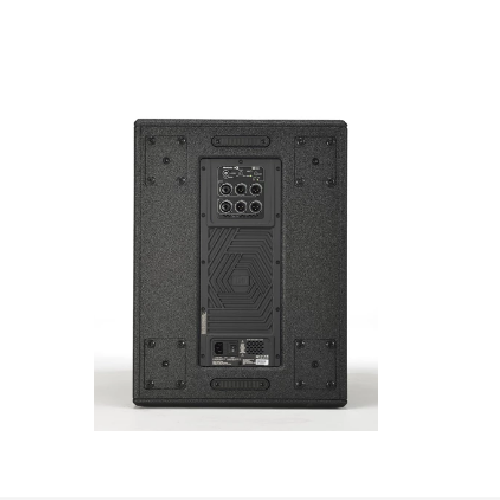

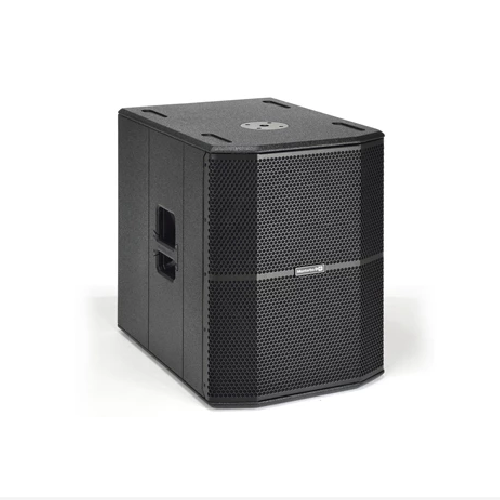

R15S is a wooden active subwoofer, 15″ woofer, 130 dB SPL and 45 Hz – Cut Frequency.R15S and R18S active subwoofers share the same rugged enclosure and elegant finish of their full-range companions. The M20 thread for pole mount makes installation very easy.Both subs of the series feature a Stereo input and a cross over Output. This is very convenient for plug&play applications, using a PA comprised of 1 sub and 2 tops, as you don’t need any external processor to manage the crossover and the signal routing: you just feed the sub with both left and right signals, and then you can split your signal directly on board thanks to the crossover output.When needed, you can simply use it as a link out to provide full range signal to another sub.TECHNICAL SPECIFICATIONSAcoustical DataSpeaker TypeActive Stereo SubwooferFrequency Response [-10 dB]45 Hz – 20 kHzMax SPL130 dBLF15″ – 4″ VCAmplifierAmp ClassDRMS Power500 WPeak power1000 WCoolingPassive RadiatorDSPDSP28/56 BitAD/DA Converter24 bit, 48 kHzControlsLEVEL, XOVER selection, POLARITY selectionConnectorsCH1/CH2: Combo, LINE OUT: XRL-M (LINK XOVER)EnclosureDimensions430 x 580 x 590 mm [16.9” x 22.8” x 23.2”]Weight31.9 kg [70.32 lb]CabinetMultilayer wood with polyurea finish
