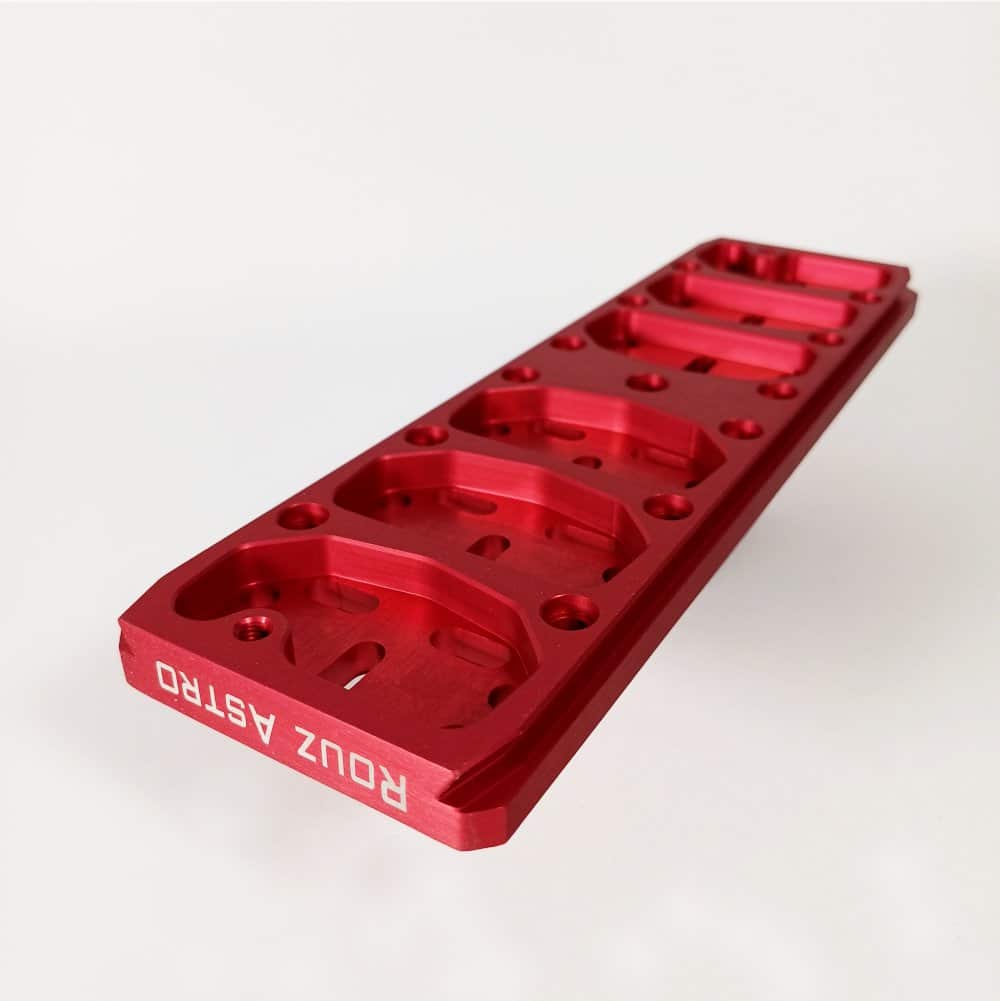

Dovetail Plate Losmandy Type CNC Aluminum

Description Dovetail Plate Losmandy Type CNC Aluminum – Hybrid System – Carbon Fiber Top Plate   The unique Rouz Astro design –  aimed to reduce weight and allow various configurations. Available in 3 Sizes:  8 inch/ 11 inch / 14 inch High strength:  Aluminum alloy T6-6061 (aircraft grade, anodized) Lightweight: Extensive CNC machining to reduce weight (up to 35% lighter than typical dovetails) Unique Design: Allows for mixed top & bottom bar sizes Repeating bolt pattern: Allows multiple positioning options (position top plates back/forward in 42mm increments) Ultra lightweight combo: Pair aluminum bottom plate with carbon composite top accessory plate Safety Stops: Add M6 bolts to either end to prevent accidental slippage Multiple Bolt-Spacing System: Compatible spacing with most brands using M6 or 1/4-20 bolts 2.0″ (Rouz Astro Tube Rings) 1.25″ Center holes/slots 20mm, 35mm, 50mm (MoreBlue) 38.1mm / 1.5″ (William Opt., Stellarvue) 55mm (PrimaLuce) 60mm / 2.362″ (Astro Physics, StellaMira) – Low profile bolthead   Specifications CNC Machined Aluminum 8inch ( 196mm): Weight 0.9lbs (400 grams) 11inch ( 280mm): Weight 1.25lbs (535 grams) 14inch ( 355mm): Weight  1.65lbs (725grams) Various hole spacing to accept M6 or 1/4-20 bolts High strength T6-6061 (aircraft grade, anodized), CNC machined construction Carbon Fiber Composite Light Duty – 10 lbs (4.5kg) Payload for Accessories 8inch ( 196mm): Weight 0.2lbs (100 grams) 11inch ( 280mm): Weight 0.35lbs (155 grams) 14inch ( 355mm): Weight  0.5lbs (255grams) Various hole spacing to accept M6 or 1/4-20 bolts Carbon Fiber composite of high modulus carbon fiber & polymers fused at high temperatures over 540 deg F (no glue or epoxy is used)
