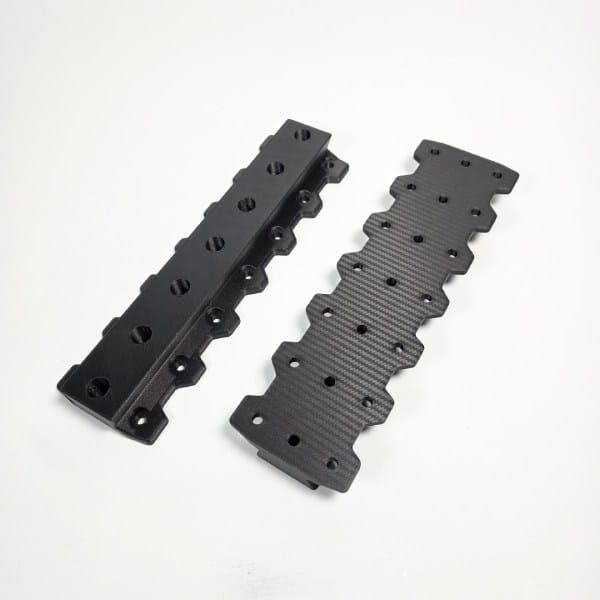

Description Vixen Style Carbon Dovetail – Wide Top – (2.0inch Bolt Spacing Fits Rouz Astro Tube Rings) An excellent place to save weight, these can be used to carry telescopes and accessories without the unnecessary weight plentily of heavy metal dovetails. Overview CAD designed FDM print for maximum strength to weight ratio, saving a lot of weight (typically 1/3 – 1/2 that of metal), that improves mount tracking performance. Compatible with Rouz Astro tube rings. Standard Version: For accessories up to 11lbs – 5kg (not to mount telescopes) Heavy Duty Version: Payloads up to 22lbs – 10kg Bolt spacing matches Rouz Astro CNC aluminum dovetail plates. *Recommended to use provided washers. Bolts not included. Specifications Light-Duty Versions For Accessories: 6in -150mm: 140 grams (0.3 lbs) 9in – 230mm: 200 grams (0.4 lbs) 11in – 275mm: 220 grams (0.5 lbs) 12in – 300mm: 260 grams (0.6 lbs) Heavy-duty versions: 6in -220mm: 190 grams (0.45 lbs) 9in – 310mm: 290 grams (0.65 lbs) 11in – 275mm: 290 grams (0.75 lbs) 12in – mm: 420 grams (0.9 lbs) Bolt spacing width: 50.8mm (2.0inches) FDM Print – Carbon fiber composite material Various hole spacing to accept M6 or 1/4-20 bolts High UV, water, chemical, salt, and temperature resistance (60 DegC – 140 DegF).
